LABORATORY DIAGNOSTICS
Our products
Veterinary Clinical Analyzer
Fluorescent reader
HAEMATOLOGY ANALYSERS
ANTIBIOTIC SUITABILITY TEST

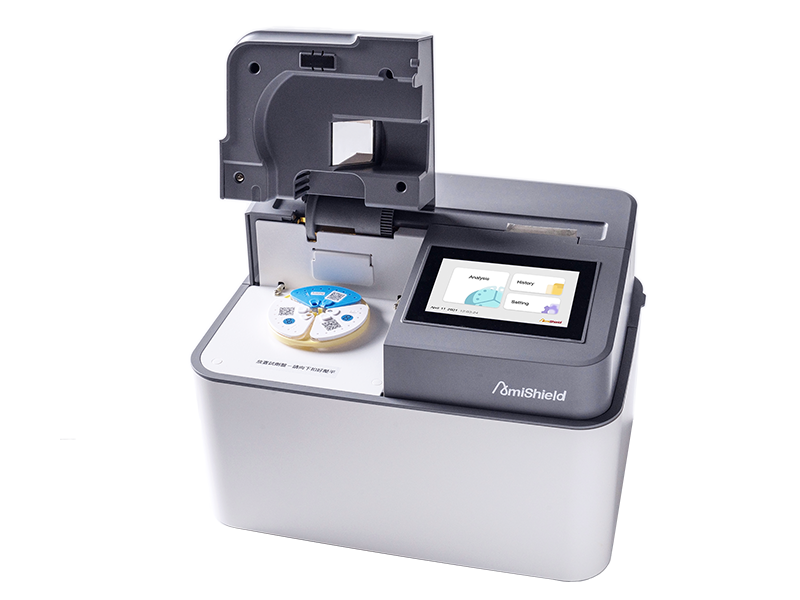

VETERINARY CHEMICAL ANALYSER
AmiShield is the all-in-one veterinary chemical analyser for biochemical, urinary, electrolyte and immunological tests. AmiShield supports over 50 species, including pets, exotic animals, birds, reptiles and horses. All thanks to its high-level multifunctional performance. AmiShield is the smart choice for veterinarians.
INNOVATIVE MICROFLUIDIC DESIGN
AmiShield’s veterinary reagent rotors and discs enable the completion of a number of operations, such as separation, dilution, reaction and detection.
Specs
50 SPECIES
Mammal: Canine, Puppy-Canine, Feline, Kitten-Feline, Rabbit, Guinea Pig, Hedgehog, Petaurus, Hamster, Chinchilla, Ferret, Groundhog, Mouse, Rat, Equine, One-Year-Old Equine, Equine-Puled, Mare-Equine, Alpaca
Avian : African Grey Parrot, Amazon Parrot, Cockatoo, Macaw, Macaw (juvenile), Eclectic Parrot, Quaker Parakeet, Cockatiel, Conurus, Cockatiel, Wavy Parakeet, Lorikeet, Lovebirds, Pigeon, Mynah, Hawk, Harris’s Hawk, Red-tailed Buzzard, Red-tailed Owl
Reptile : Turtle, Box turtle, Freshwater turtle, Sea turtle, Iguana, Pogona, Gecko, Varanus, Chameleon, Python, Boa constrictor, Corn snake
UNITS S.I. Units, Common Units
SAMPLE TYPE Whole blood, plasma, serum, urine
TEST MEASURE 0.06 ml (60 µl), 0.14 ml (140 µl)
Reagent disc storage 2 – 8 ℃
Analysis time 12 – 15 minutes
Room temperature 15 – 30 ℃
Interface USB 2.0, RS232, Ethernet
Power supply 110 – 220 Volt CA, 50 – 60 Hz
Weight 7.5 kg
Size (L) 340mm x (L) 240mm x (A) 240mm
Measuring principle Absorbance, Spectroscopy
Test method Patented microfluidic reagent disc
Assay principle Biochemistry and immunoanalysis
Light source Halogen lamp
Detector Full Wave Spectrophotometer
Wavelength 340 nm – 800 nm
Reagent rotor up to 18 tests per rotor
Reagent disc up to 4 tests per disc

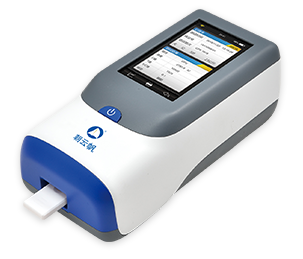

FLUORESCENCE READER FOR DIAGNOSTIC TESTS
Animal health at hand
- NUso estensivo, 36 test e in continua crescita
- NAttrezzatura avanzata: schermo capacitivo a colori, batteria al litio integrata
- NTrasportabile a mano, diagnosi mobile
- NRisultati veloci, facile da usare
- NGrande stabilità e SNR
- NPrestazioni eccezionali: CV≤10%, o≤10%, Δ≤10%, r≥0.99
- NElevata sensibilità e specificità
- NConnessione Wi-Fi per caricare le informazioni nel cloud, scaricando automaticamente i parametri

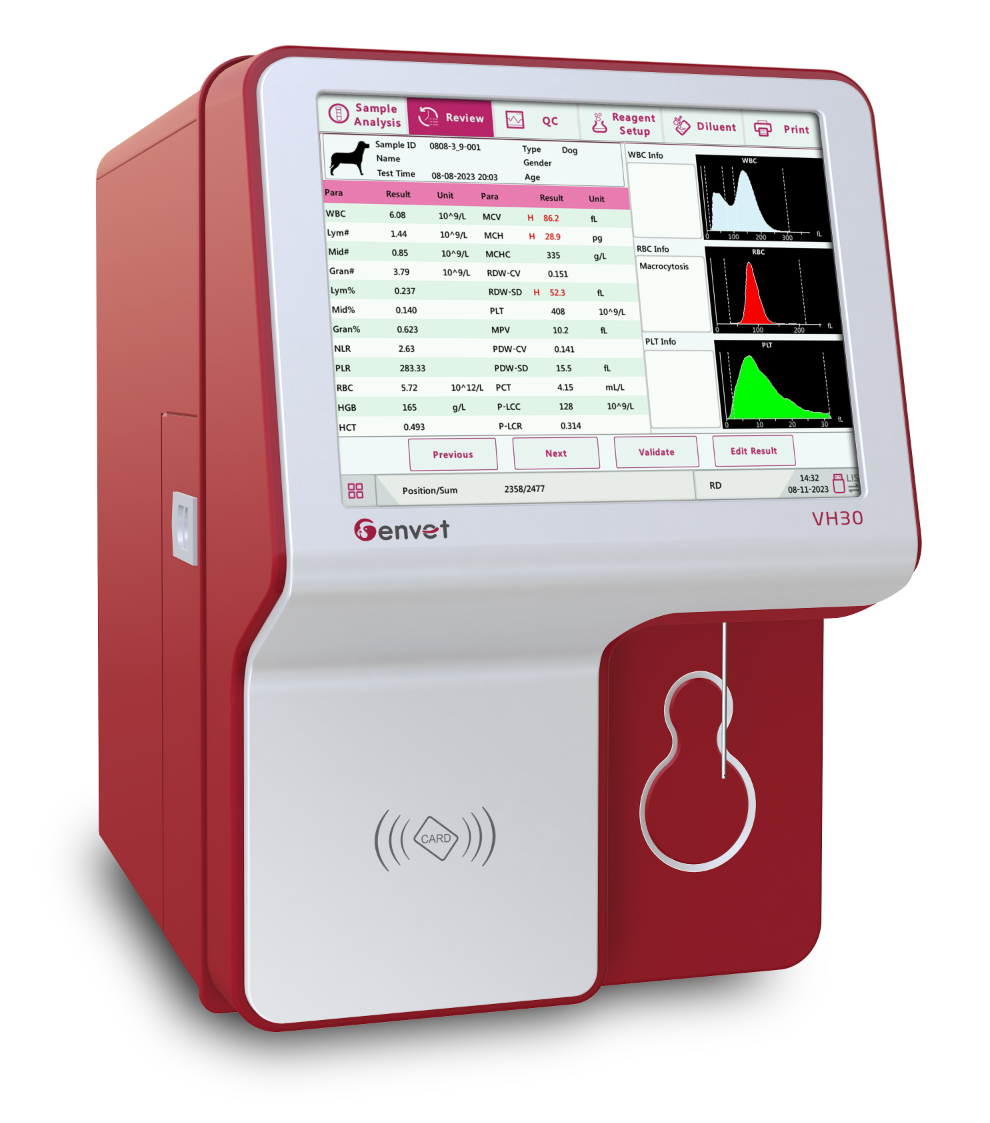

hema 30
Haematology analyser 3 populations
Specs
- Analysis speed: 35 samples/hour
- 24 parameters: WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW-SD, PDW-CV, PCT, P-LCR, P-LCC, NLR, PLR
- Sampling method: Whole blood, pre-diluted
- 10.4 inch TFT touch screen
- Support: 19 species (special algorithm)
- Intelligent counting mode Specially designed for low WBC/PLT samples
- Intelligent WBC mode, intelligent PLT mode, intelligent WBC/PLT mode
- Integrated printer
HEMA 30 is the 3-population analyser with a speed of 35 samples per hour. This machine is configured as an instrument for medium/small veterinary practices and laboratories.
- NI consumi ridotti garantiscono costi più bassi e ordini meno frequenti
- NLa possibilità di pre-diluire il campione lo rende idoneo anche con campioni di sangue in quantità esigue
- NLa presenza di soli due reagenti permette ordine nella struttura
- NIl menù ampio ma semplice consente di personalizzare l’esame e alcune caratteristiche in maniera facile e veloce

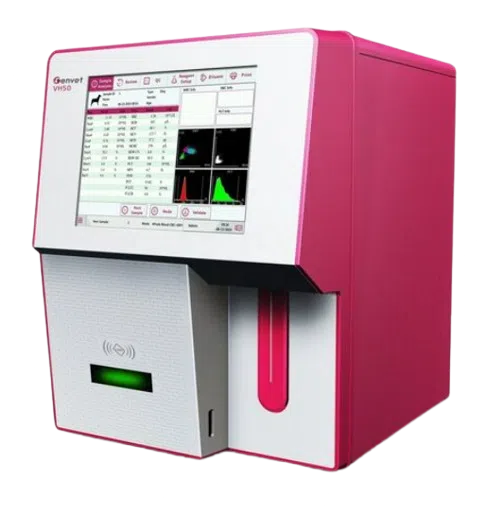

hema 50
Haematology analyser 5 populations
Specs
- Analysis speed: 60 samples/hour
- 36 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC, NLR, PLR.
ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC#, PLT Clumps%, PLT Clumps# (RUO). -
Triangular laser scattering and sheath flow for WBC differentiation and counting
-
36 parameters + 4 scattergrams + 2 histograms
-
Sampling method: Whole blood, pre-diluted
-
20μl of whole blood
-
Built-in 10.4-inch TFT touch screen
-
Support of 19 species: cat, dog, rabbit, sheep, goat, bovine, horse, rat, mouse, llama, deer, musk deer, monkey, tiger, dolphin, pig, camel, ferret, panda.
-
Intelligent counting mode with improved repeatability for samples with low WBC / PLT values.
HEMA 50 is the new 5-population analyser with a throughput of 60 samples per hour and 36 parameters, 4 snapshots (for WBC differentiation) and 2 histograms (WBC, RBC). This machine is designed to meet the needs of more structured veterinary practices and laboratories.
- NÈ in grado di analizzare tutte le popolazioni leucocitarie e fornire 4 scatterogrammi completi
- NGrazie alla presenza del controllo di qualità e alle tecnologie innovative garantisce ottime performance.
- NSono presenti: tecnologia laser, impedenziometria e fotometria.
- NGli allarmi di manutenzione impostabili e il facile menù lo rendono adatto ad ogni operatore.

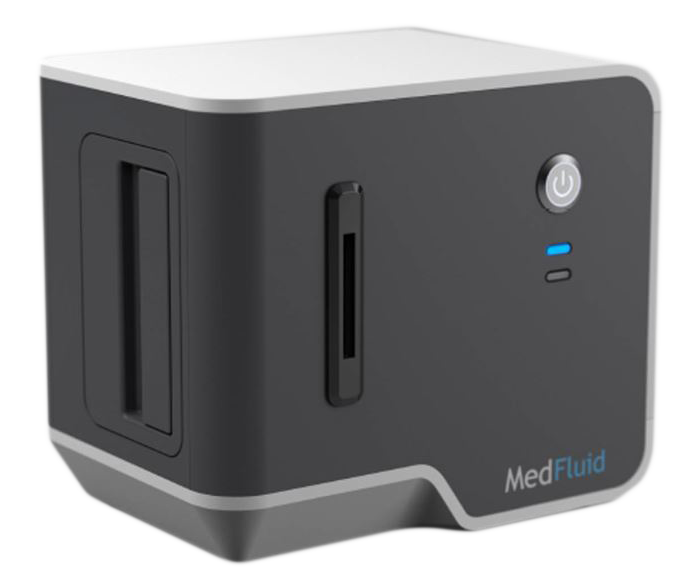

NAST – Suitability testing for antibiotics
Your tool for clinical diagnosis
NAST instrumentation offers veterinarians an all-in-one solution for antibiotic proficiency testing (AST), through microfluidic technology integrated with an automated detection instrument and specialised reagents.
AST results for 15 antibiotics can be obtained in a single reaction. Two antibiotic combination panels (MB04, MB07) are currently available.
antibiotics in the test
- Amplicin
- Augmentin
- Azithromicyn
- Cefadroxil
- Ceftazidine
- Cefixime
- Cephalexin
- Ciprofloxacin
- Clindamycin
- Doxycycline
- Enrofloxacine
- Erthromicyn
- Gentamicin
- Meropenem
- Metronidazole
- Minocycline
- Trimethoprim / sulfamethoxazole
- Vancomycin
